The schematics may be downloaded from here.

Watch the video up above for a walkthrough of the system installation and operation.

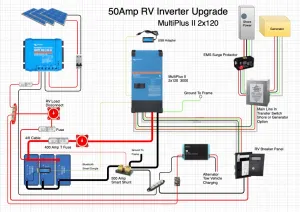

Upgraded 50 Amp RV Multiplus II 2120 Inverter

Upgrade for a 50 amp manual switch inverter

Upgraded 50 Amp SPS AUTO Switch Inverter

Upgrade for a 30 amp RV inverter

Look at the graphic of the 50 amp configuration with half the RV panel energized to understand how SOLAR PANELS connect into the system.

The graphic has enough space to show how it connects.

Upgraded 50 Amp RV Half Panel Power
