It is annoying to have electricity problems when camping.

Unfortunately, since outlets might be powered by shore power, a generator, or coach batteries working with an inverter, RV electrical systems can be difficult to understand.

Many RV owners often question why their outlets in their vehicles won’t function.

I’ve learned the following while troubleshooting my RV:

The power inverter being off when not connected to shore or generator power or a tripped GFCI outlet are the two most frequent reasons for RV outlets not functioning.

The good news is that those breakers are a portion of the outlets that are close to the sinks if there is a GFCI problem.

Simply re-insert the little button on the tripped outlet you can see, and everything should turn back on.

Additionally, if the problem is with the inverter, it may be resolved quickly by just pressing the power button.

Other problems, such as your coach’s batteries being dead or not charging, are possible, nevertheless.

Therefore, if the outlets in your RV aren’t functioning, you’ve come to the perfect location.

I’ll go through frequent worries about RV electrical systems in this post.

Let’s begin, then.

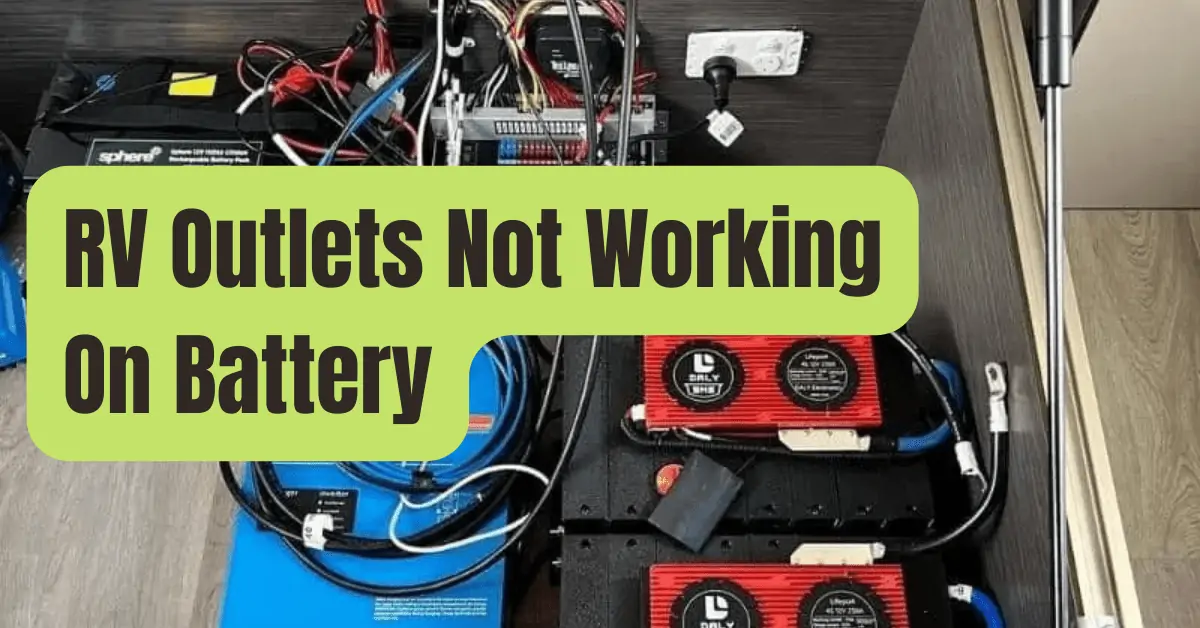

Are RV Outlets Battery Powered?

Direct use of battery power will not operate RV outlets.

120 volts AC are used in RV outlets.

DC 12 volt batteries are used.

The only way to run the RV on batteries is with an inverter that converts 12 volts of DC electricity into 120 volts of AC power, but doing so quickly depletes your battery.

Make sure your batteries have enough capacity to power your small appliances if you want to utilize an inverter.

Your battery may be rapidly discharged by a coffee machine, hairdryer, or microwave.

And that assumes your battery is even capable of supplying the inverter with the amperage and voltage needed.

You can use small appliances like a TV or a hairdryer thanks to inverters.

They are ineffective, however, and will rapidly deplete your battery—typically within an hour or so.

When the battery is no longer able to power the machine, they often sound an alert, but they also promptly shut down after the alarm.

Then, in addition to having electricity for your outlets, you also need to figure out how to recharge your 12-volt battery, which has run out of juice.

Inverters often don’t utilise your battery power as effectively as they might.

Therefore, you should utilize your generator or shore electricity unless you are dry camping.

Additionally, using a generator past quiet hours is not advised or permitted in the majority of campgrounds, so it is not a good solution for the entire night.

But using a generator is preferable to using an inverter if you are not at a campground and do not have access to shore power.

If you’ve never camped before, you’re probably aware that RV stands for “recreational vehicle.” Probably also familiar to you is the word motorhome.

Although not all RVs are motorhomes, did you know that?

RVs include non-motorized campers like fifth wheels and travel trailers that aren’t considered motorhomes.

Visit this recent post to learn more about the many RV types and the reasons why the names are frequently used synonymously.

To read it on my website, just click the link.

How Is An RV Outlet Fixed?

To repair a malfunctioning RV outlet:

  1. Make sure you have electricity, either from a generator, shore power, or an inverter.
  2. In order to ensure that the GFCI breaker has not been tripped, check any outlets next to sinks.
  3. To be sure no breakers have tripped, check the main breaker panel.
  4. Check each of the RV’s outlets to check whether there is just one that is broken.
  5. If there is only one broken outlet change out that outlet (cut power 1st)

In RVs, broken outlets are fairly typical.

You can try a few different things to diagnose and fix your outlets.

You first require a few tools.

Problems with the outlet itself may be identified with a receptacle tester.

The voltage in an outlet may be rapidly checked with a multimeter or voltage tester.

But you don’t really need to be that specific.

Step 1: Check The GFCI Outlets First.

The GFCI outlets in your RV should be checked first if an outlet stops functioning.

It is the simplest and fastest item to examine and repair.

Simply click the reset button.

Step 2: Check The Breakers And Inverter Next.

Then, if you have an inverter, make sure the electricity is on and inspect it.

If you are not using a generator or shore electricity, you simply need the inverter.

However, a lot of RVers just leave it on all the time.

Check the generator or shore power breaker, too.

You may skip this step if any of your outlets are functional.

None of the outlets would function if the electricity tripped at the pole or generator.

Step 3: You Must Verify Each Outlet Whether Everything Has Been Checked And Everything Is In Order.

Find out which outlet is the problem by using your receptacle tester.

You’ll need to open the problematic outlet if you already know which one it is in order to inspect the wiring.

Make sure to shut off the main breaker and disconnect any power before doing this, though.

Step 4: Check The Wiring After Unscrewing The Outlet From The Wall.

Vibration can occasionally cause a wire to come loose, which will stop the outlet from working.

Verify the security of each and every wire.

Step 5: If Necessary, Replace The Outlet.

Any domestic outlet ought to work for you.

Of course, call a professional if you are unsure about checking wires and replacing outlets.

It makes no sense to risk electrocuting yourself or triggering more electrical issues in order to save a few bucks.

However, with the power off, a typical homeowner can repair an outlet in about 5 minutes for a few bucks.

Why Do The GFCI Outlets In My RV Constantly Tripping?

The most frequent cause of RV GFCI breakers tripping is water splashing into the outlet.

The GFCI outlet is technically detecting an imbalance between the hot and neutral conductors in this situation.

This often indicates that one of the wires is leaking current to the ground.

The most common places to locate GFCI outlets are in the kitchen and bathroom as well as on any outlet outside the RV since they are designed to be used close to sinks.

Circuit breakers are already included in GFCI outlets.

These little circuit breakers are very susceptible to poor electrical system grounding and reverse polarity.

Of course, you most likely have faulty wiring or an outlet if there is no water present and the outlet is still tripping.

Replace the GFCI outlet that trips first (with the power off).

If it trips even with the new outlet installed, you probably have a bigger issue that has to be fixed by an RV repair facility.

What Distinguishes An RV Inverter From A Converter?

Power is evenly distributed throughout the RV thanks to the converter.

They convert AC energy into DC energy.

DC electricity is converted to AC power via inverters.

A 30 or 50 amp RV power outlet box provides 120-volt AC, or alternating current, electricity when you connect in your RV.

For usage, RVs must convert that electricity into 12-volt direct current, or DC power.

Electrical appliances and fixtures in RVs won’t operate without a functioning power converter.

Power is evenly distributed throughout the RV thanks to the converter.

When the RV is connected in to shore power or is powered by a generator, 12 volt electricity is sent to the DC systems.

The home batteries are also charged by it.

An inverter may be used instead of a converter.

If you don’t have access to shore power or the generator, you’ll need an inverter (if you have one).

In such circumstances, you essentially have to utilize the coach batteries while you’re dry camping if you want electricity in the RV.

However, coach batteries only provide 12 volts of DC power, which is insufficient to run outlets or appliances.

That is used by the inverter to transform it into power for your RV.

Just be mindful that utilizing a lot of power may rapidly drain the bus batteries.

If you see flickering or dimming lights, they are beginning to deplete.

Your coach batteries may be recharged in a few different ways, including by using the generator, connecting to shore power, or, in certain motorhome models, by running the engine, which will enable the chassis batteries to charge the coach batteries.

What Happens If The RV Converter Malfunctions?

Even when connected to shore power, coach batteries will discharge when an RV converter malfunctions.

Anything inside the RV designed to run on 12v DC power won’t work well or at all as a result.

Additionally, you can observe sudden light flashing or dimming.

There are clear indicators that point to either a battery issue or a converter issue.

It may indicate a problem with your converter if the cooling fan, internal vents, or interior lighting aren’t functioning correctly.

Convertor issues may be to blame if you notice unusual flickering or dimming of the lights on the dashboard or all around the RV.

Finally, the battery or the converter is probably to blame if the onboard batteries of your RV aren’t holding a charge.

We’ll discuss some particular strategies for troubleshooting your RV converter below.

Check Your Converter

There are a few measures you should follow if you experience any of the concerns mentioned above or if you just want to make sure your RV converter is in good operating condition.

Check your DC batteries first.

Turn off the inverter, engine, and generator before disconnecting any power sources.

Use a digital multimeter to test each battery.

The battery is functioning adequately if it can maintain a charge between 12.3 and 12.9 volts.

Any less is a negative indication.

Next, check the voltage box’s AC power.

Use your reliable multimeter once again.

Make that the electricity is being delivered appropriately.

Finally, use the multimeter to test the converter at the DC distribution panel.

There should be 12.3 to 12.9 volts on the meter.

Any more issues must be dealt with.

Unfortunately, there are various ways that RV conversions might go wrong.

On this list, we’ve gathered the most frequent problems with RV converters and their solutions.

Simply said, it’s impossible to address or resolve every problem.

How To Fix Your Converter

  • Examine the battery.

Every RV battery degrades over time.

If your RV has been in storage without access to electricity, the issue might be as simple as a dead battery.

  • Examine the fuses.

It’s inexpensive and simple to repair blown fuses.

And RVs often have blown fuses.

To be sure the issue isn’t merely a blown fuse, check the fuse box.

  • Examine the circuit breakers.

Your circuit breaker needs to cool down and be reset if it has tripped.

  • Verify the cooling fan.

Perhaps your converter is overheating.

Make sure the fan is on and the space is clean by checking.

It has to be well ventilated.

  • Examine the converter for defects.

Finally, look for any physical evidence of deterioration on the circuit board.

It could be time to replace it if it’s old.

Make sure the resistors in your converter are working correctly if it does.

Batteries might malfunction as a result of faulty resistors.

To reach the resistors, you may need to dismantle the converter.

This will give you an opportunity to check that everything else at least seems to be in order inside.

Look around for any evidence of fire while you’re inside.

You could see charring or even smell burnt electricity.

It could have been overloaded and caught fire.

If that’s the case, you’ll need to replace it immediately.

Fortunately, RV conversions aren’t all that complicated.

Most problems can be resolved.

In My RV, What’s The Difference Between The DC And AC Power Sources?

All conventional home gadgets that are connected into a wall socket are powered by AC electricity.

Batteries hold DC electricity, which is used by the electrical system, auto charging outlets, and USB ports in an RV.

Understand the distinction between DC (direct current) and AC (alternating current) electricity before you can comprehend what an inverter or converter is.

Everything that has a battery inside uses DC power.

Therefore, you are utilizing AC power when you use shore power.

Boondocking involves the use of DC power.

You may switch between the two power sources with the use of inverters and converters.

Inverters convert DC power into AC power, while converters convert AC power into DC power.

Batteries are charged by converters, which is their main purpose.

Additionally, they go by the name “chargers” a lot.

Converting Versus Inverting

Usually, converters are included with RVs.

They are simple devices that convert 120 volt AC electricity to 12 volt DC power.

They power your RV while gradually charging your battery.

If you often plug into shore power, converters are the best option.

You’ll need an inverter if you want to go boondocking and use a laptop, coffee maker, or anything else that plugs into a power outlet.

With an inverter, capacity is the most crucial factor to consider.

When converting a 12V source to 120V, inverters must deliver 10 times the voltage.

They draw 10 times more current from the batteries as a consequence.

For instance, the inverter is pulling 50 Amps from the batteries while you are watching TV and the device calls for a 5 Amp AC demand.

This can rapidly deplete your battery.

When utilizing an inverter, there are a few things to keep in mind.

They can’t run heavy appliances, to start.

Appliances like refrigerators, air conditioners, and even microwaves may rapidly deplete the batteries.

You need to be plugged into shore power or a generator if you want to utilize heavy equipment.

If you use an inverter, you should think about pairing your inverter system with a solar panel array.

While dry camping, this will enable some battery voltage recovery.

While linked to shore power or a generator, converters, on the other hand, charge batteries.

You may also utilize the huge appliances and wall plugs.

Power is distributed throughout the various AC and DC circuits using converters.

This indicates that the converter uses breaker switches to distribute electricity to various branch circuits after obtaining it from the shoreline or a generator.

For diverse 12v home systems, there are distinct fuse panels.

A built-in distribution system is absent from inverters.

Therefore, it is necessary to establish separate fuse panels and breaker boxes.

Additionally, they are not often integrated inside an RV.

Therefore, if you want one, you’ll need to buy an aftermarket version and install it yourself or have a professional do it.

Knowing that most RVs contain a battery for the motor similar to a vehicle battery, you are an RV owner.

Chassis batteries are a common name for them.

However, they also feature a battery, or sometimes even many batteries, to power the RV’s interior.

Coach batteries are a common name for them.

Check read our latest post to learn more about the variations between the chassis battery and the house battery.

To read it on my website, just click the link.

Why Won’t The Generator Outlets In My RV Work?

Any outlet inside the RV that isn’t functioning if the generator is running probably has a tripped breaker.

Check the outlet’s breaker and reset it if required for GFCI outlets.

If not, reset the breaker and inspect the main breaker panel.

The kitchen and bathroom are often where you’ll find GFCI outlets.

However, some RV makers are even putting them in awkward locations, including within cupboards.

Check all of your outlets for reset switches if you are unsure of the precise locations of all of your GFCI outlets.

They’ll probably be available at outside stores as well.

To reset them, just press the button.

So that you won’t have to examine all of your outlets the next time you have electrical issues, make a note of them for later.

Of course, if you have gas and oil in your generator and it won’t start, you should check the main breaker panel to determine whether a generator breaker has tripped.

Depending on the model year, the position of the generator’s breaker may differ, but it may also be in the generator compartment.

Why Do My RV’s Electrical Outlets Not Function Even If The Breaker Is Not Tripped?

It is probably a problem with your shore power, generator, inverter, or converter when your RV outlets are not functioning but the breaker is not tripped.

It happens often for new RV owners to trip breakers.

Even if the internal breakers haven’t tripped, you could sometimes lose power.

It might be simpler to diagnose problems if you understand how your equipment’s fundamental electrical system operates.

Check the breaker on the post if you are connected to the campsite electricity.

There will be separate breakers for each post.

Check the outside breaker if your power goes out and the interior breakers haven’t tripped.

Of course, it isn’t likely the problem if you actually have power for stuff except the outlets.

Most RVs feature GFCI (Ground Fault Circuit Interrupter) outlets, much as in your house.

These may be found in moist areas like the kitchen or bathroom.

GFCI outlets, in contrast to normal outlets, feature buttons marked “test” and “reset.”

You are intended to be protected against electric shock and electrocution by these outlets.

When a ground fault is detected, an internal switch in them turns off the current to the outlet.

Try depressing the GFCI outlet’s reset button.

The “test” button would pop back out if it were to trip, and the outlet would receive electricity once again.

What should you do if you’ve tested the GFCI outlets, the campground power pole breaker, and the RV breakers but still don’t have electricity?

Checking the inverter is your last option if you’re still without electricity.

Theoretically, you can avoid using the inverter if you have the generator running or are plugged into shore power.

But it’s conceivable that it’s broken and causing a problem.

The reset button on inverters is similar to that on the GFCI outlet.

Toggle it.

After performing all of this, if your outlets still don’t work, you could have an electrical problem.

A professional inspection of your wiring is an excellent idea.

Electrical problems may start fires.

RV 12 volt System Not Working – NO 12 volt DC power but everything works when plugged in – Camper – Mile High Campers

Did I Answer All Of Your Questions Regarding Why The Outlets In Your RV Aren’t Working?

Check all of the breakers first if your RV outlets suddenly stop working.

Check both the RV breakers and the shore power breaker.

Additionally, verify that none of your GFCI outlets have tripped.

Having a multimeter on hand is a must.

Use it to test the power of your converter and inverter as well as the battery.

If you are boondocking, inverter power is acceptable, but pay attention to your battery.

Otherwise, utilize a generator or shore power.

Be safe above anything else.

Call an electrician if you’re unsure.

Published on

Written by Bob Matsuoka
Bob Matsuoka is a blogger and founder of RVing Beginner blog. He has been blogging for over five years, writing about his own family’s RV adventures, tips for people who are interested in buying an RV or taking their family on an adventure by RV.
