In the market for new washers and dryers? Discover the typical sizes of front-loading and top-loading washers and dryers in this guide, along with different combinations and sizing advice, to help you select the set that keeps laundry day under control.

What Dimensions For Washers And Dryers Are Typical?

For front-loading machines, typical washer and dryer dimensions are 27 inches wide, 39 inches tall, and 32 to 34 inches deep.

Top-loading washers and dryers, on the other hand, are normally 27 inches broad, 42 to 44 inches tall, and just slightly deeper (27 to 28 inches).

When measuring, remember to leave at least six inches between the rear wall and the appliance to accommodate hoses and ventilation.

For side-by-side units, you need also leave an inch between the washer and dryer.

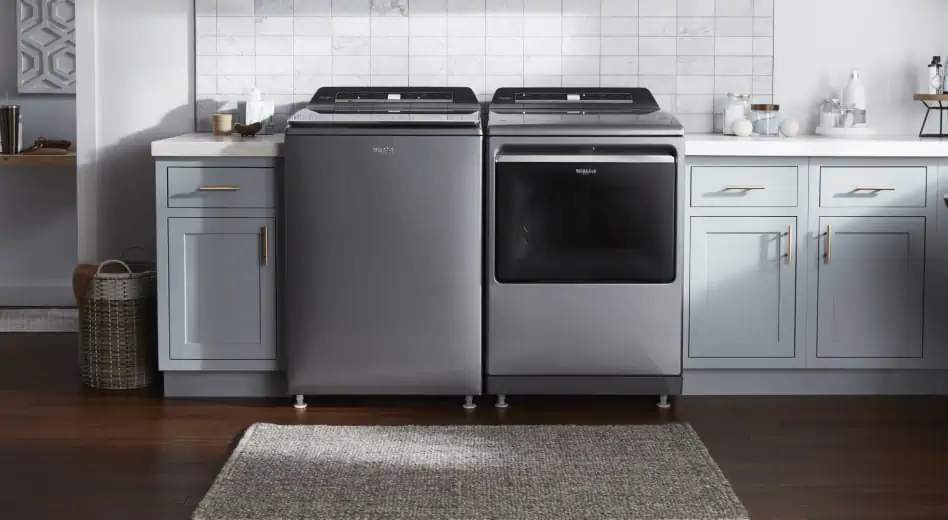

Dimensions Of A Typical Side-By-Side Washer And Dryer

You will want an area that is around 56 inches wide for a set of ordinary side-by-side washers and dryers.

In order to have enough room to load and unload your laundry, front-loading appliances should have a four-foot clearance in front of them.

Consider leaving at least two feet of space above top-loading appliances to allow for simple lid opening and shutting.

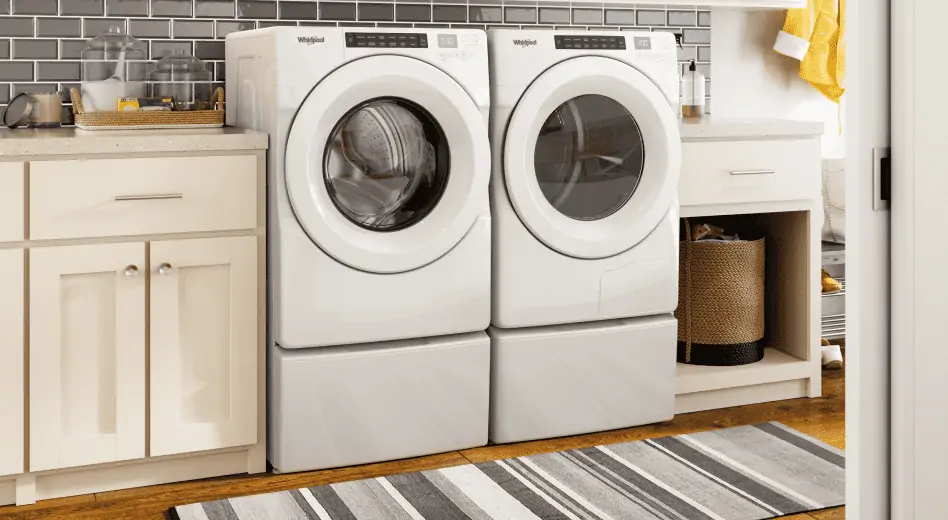

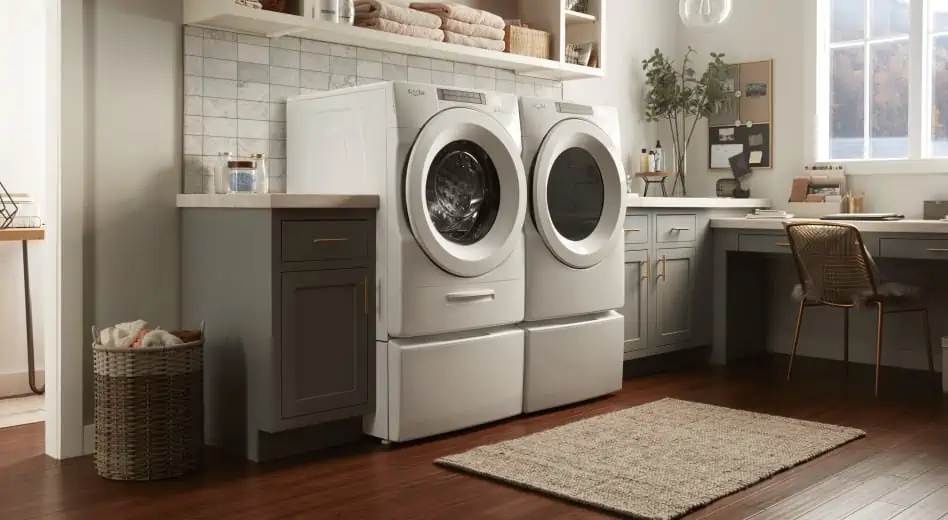

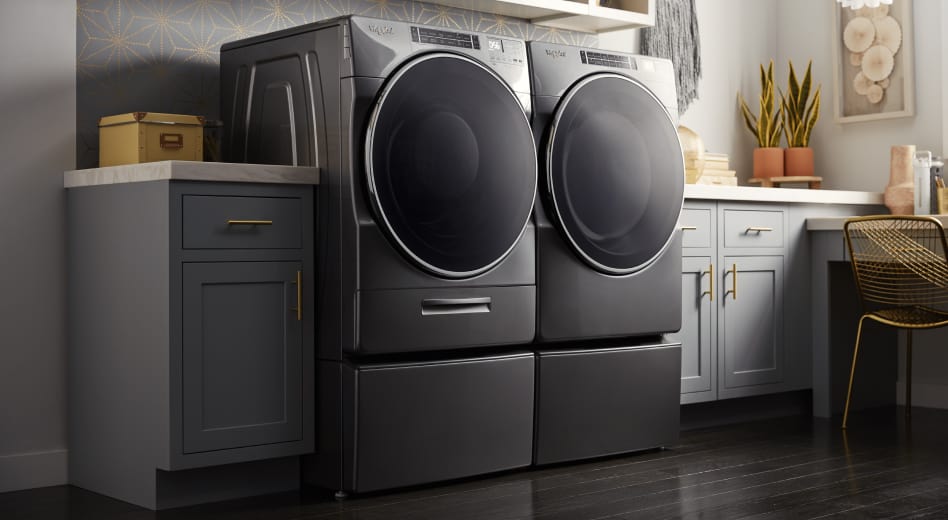

Whirlpool front-loading washers and dryers with pedestals can be raised by roughly 15 inches, making it easier to load and unload with less bending.

Standard dryers often have a capacity of five to seven cu ft, whereas standard washers typically have a capacity of three to five cu ft.

Furthermore, top-loading washers may have a capacity of somewhat more than five cubic feet, but front-loading washers have a lesser capacity and often peak out at five cubic feet.

Shop Whirlpool For Full-Size Washers And Dryers.

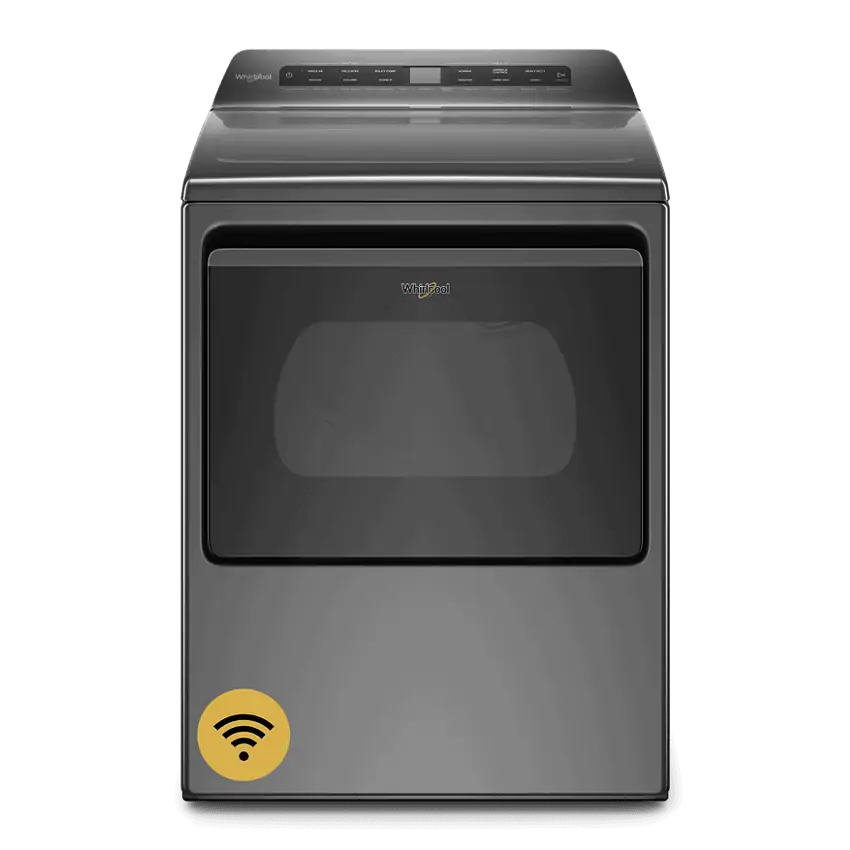

#1. 7.4 cu. ft. Smart Top Load Electric Dryer

WED6120HC

Free Delivery

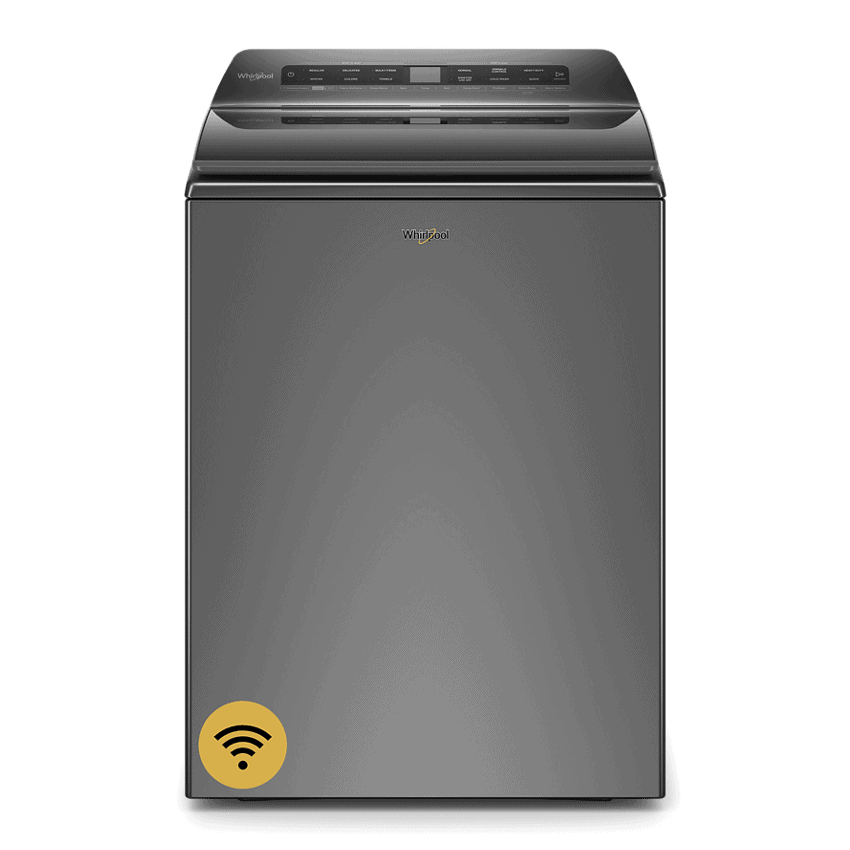

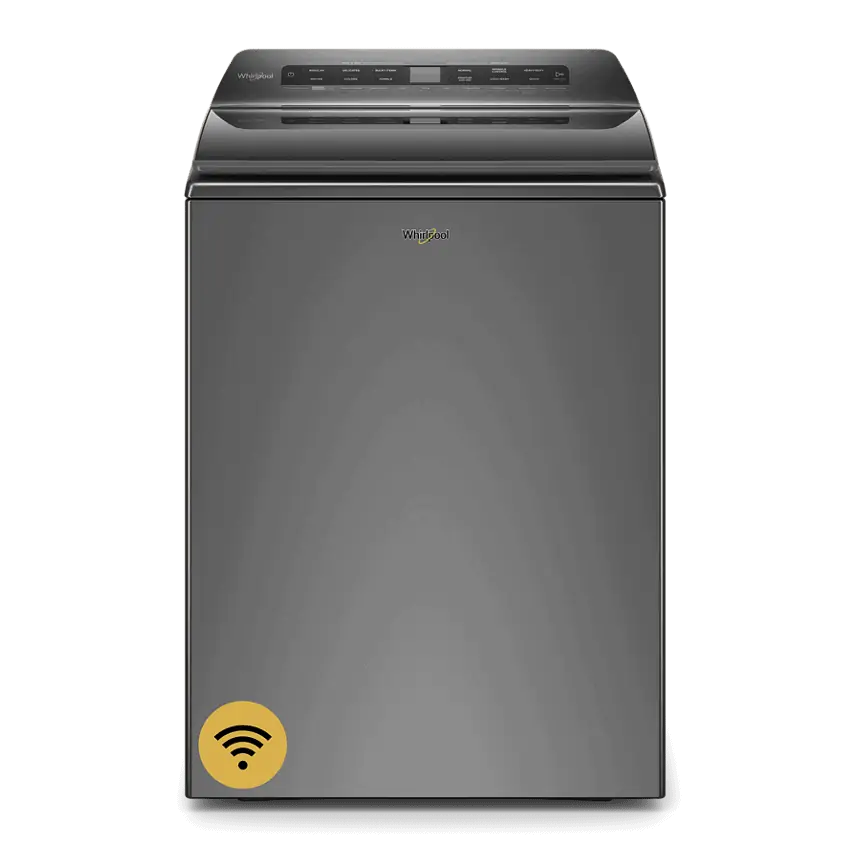

#2. 4.8 cu. ft. Smart Top Load Washer

WTW6120HC

Free Delivery

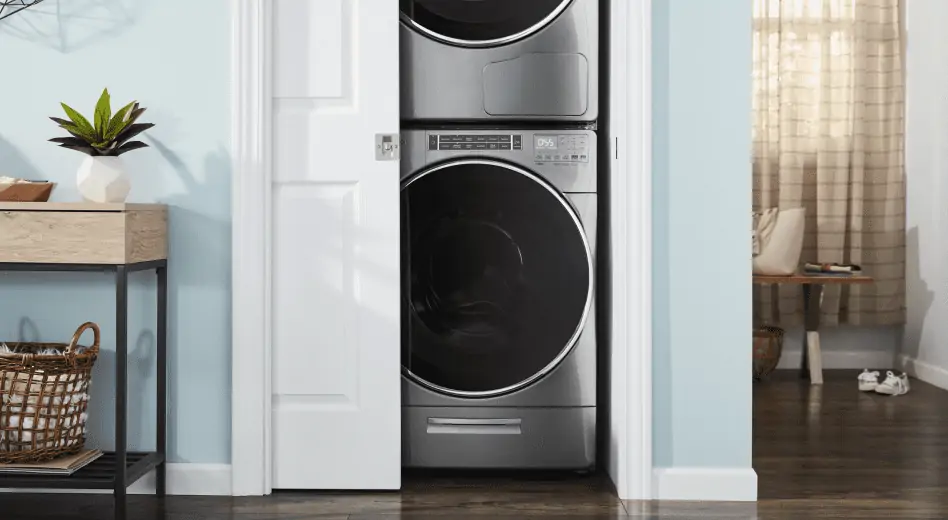

Dimensions Of Stacked Washers And Dryers

It may be great if you have more vertical than horizontal room in your house to stack several front-load washers and dryers.

The dimensions of Whirlpool’s stackable washers and dryers are inline with industry standards, which call for appliances to be between 24 and 28 inches wide, 39 inches tall, and 32 to 34 inches deep.

Make sure to allow for a laundry room that is around 29 inches wide, 80 inches tall, and 32 to 34 inches deep to accommodate both the washer and dryer in order to fit the appliances in your available space.

Additionally, keep in mind that the appliance needs at least six inches of space between it and the back wall for optimal ventilation.

Allow at least an inch between each side of the appliance and the wall if you are stacking in a closet.

Discover Whirlpool’s stacked laundry centers.

Shop Whirlpool For Stackable Washers And Dryers.

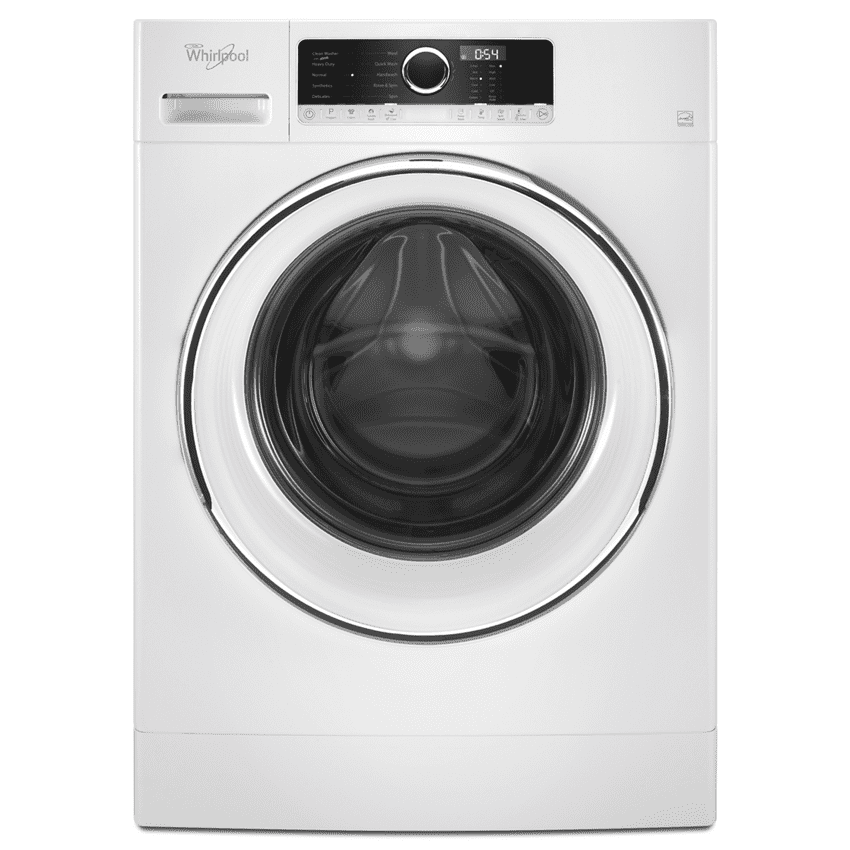

#1. 2.3 cu. ft. 24″ Compact Washer with Detergent Dosing Aid Option

WFW5090JW

Free Delivery

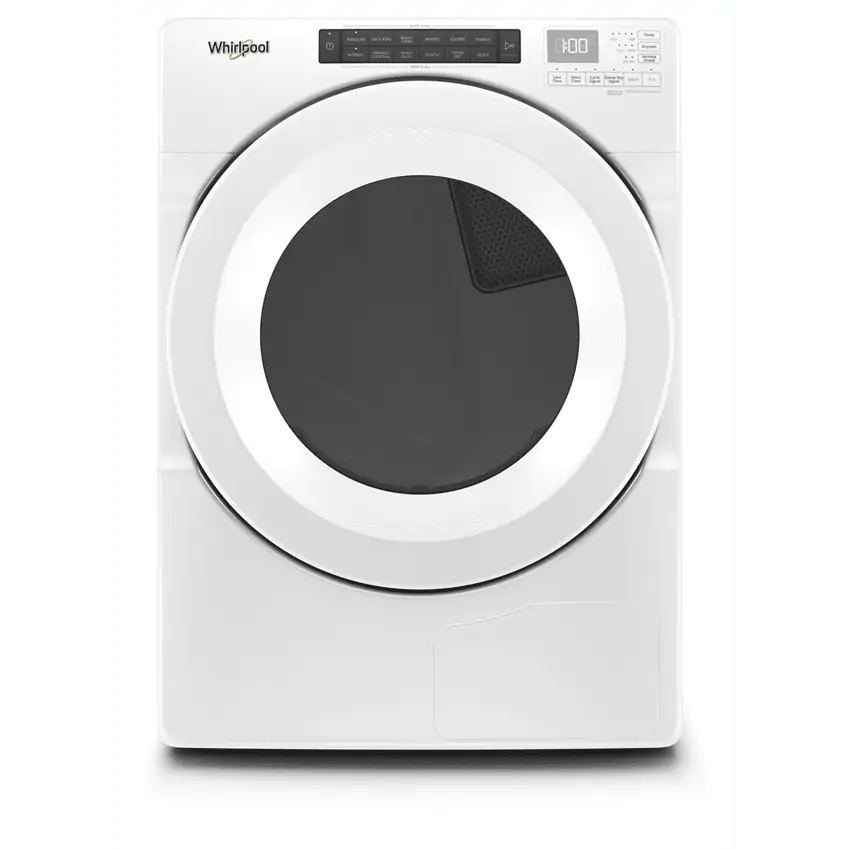

#2. 7.4 cu.ft Front Load Heat Pump Dryer with Intiutitive Touch Controls, Advanced Moisture Sensing

WHD560CHW

Free Delivery

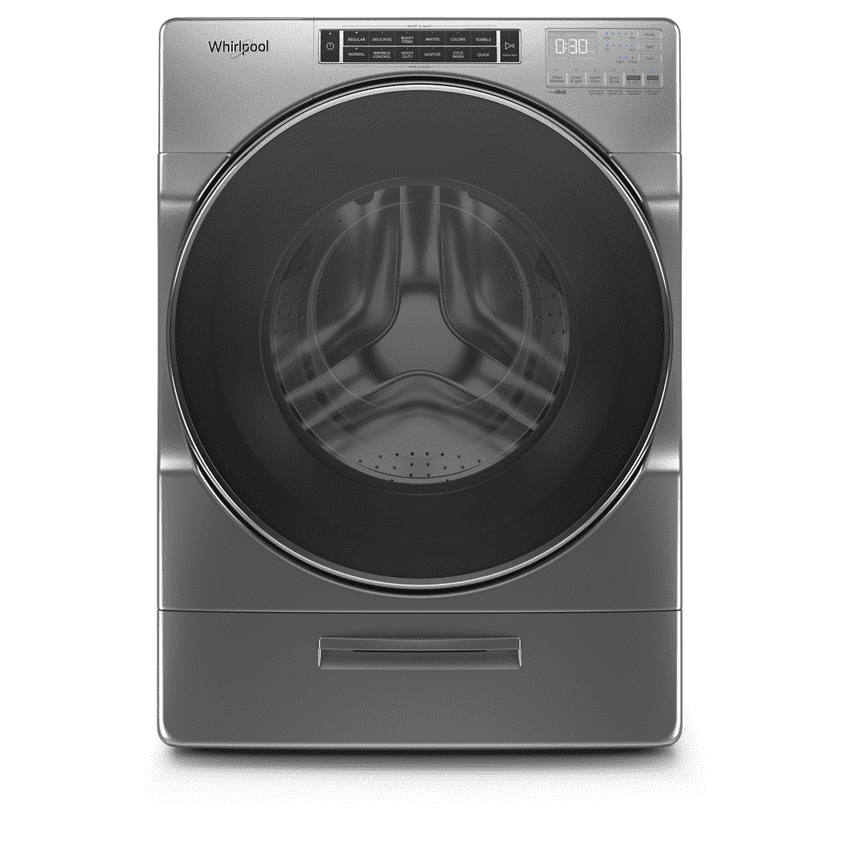

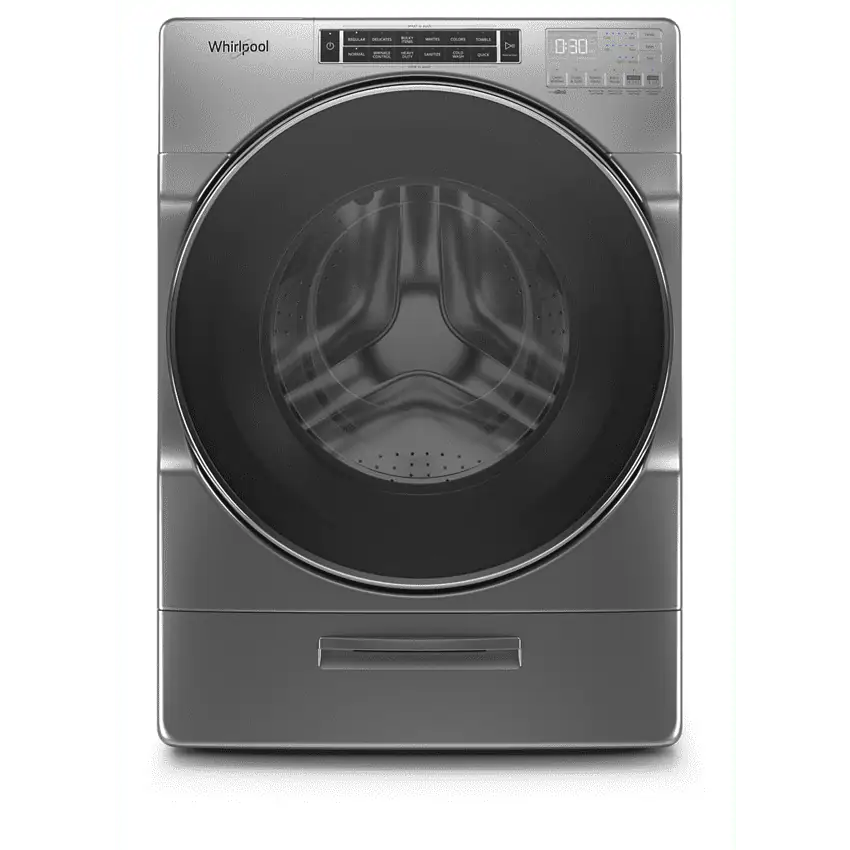

#3. 5.0 cu. ft. Front Load Washer with Load & Goâ„¢ XL Dispenser

WFW8620HC

Free Delivery

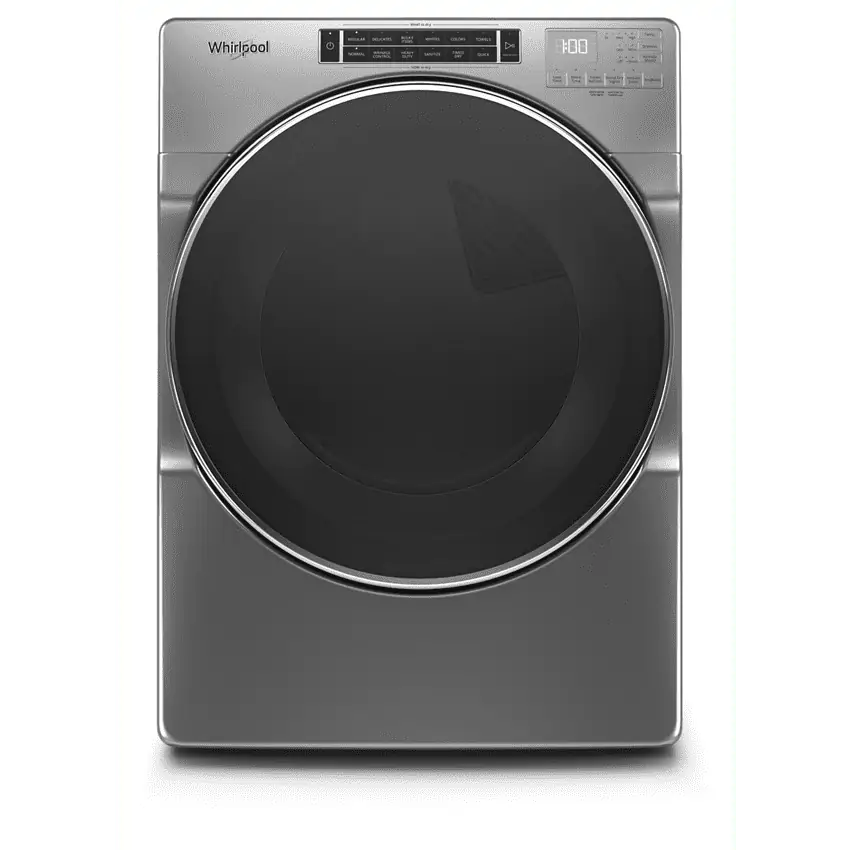

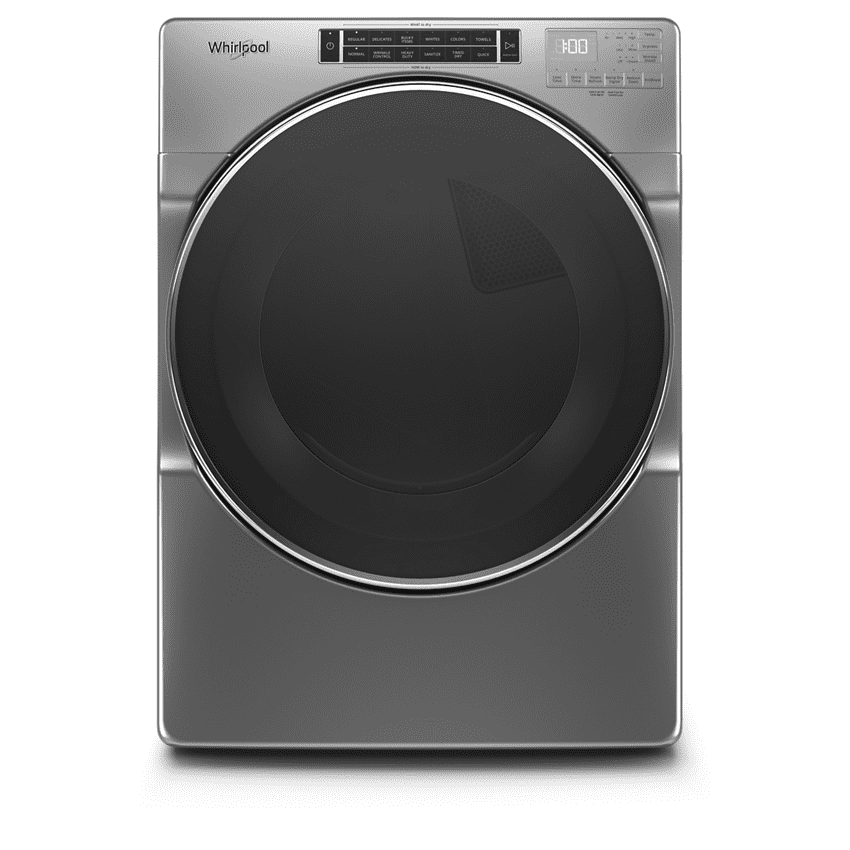

#4. 7.4 cu. ft. Front Load Electric Dryer with Steam Cycles

WED8620HC

Free Delivery

#5. Whirlpool Offers Stacked Laundry Centers.

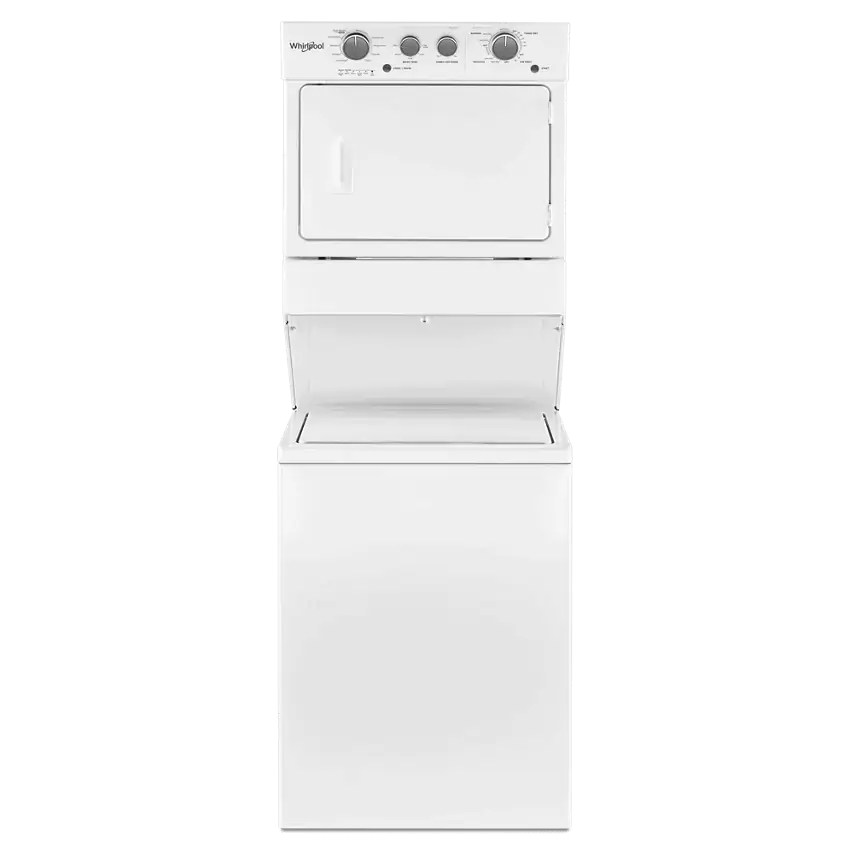

#6. 3.5 cu.ft Long Vent Electric Stacked Laundry Center 9 Wash cycles and AutoDryâ„¢

WETLV27HW

Free Delivery

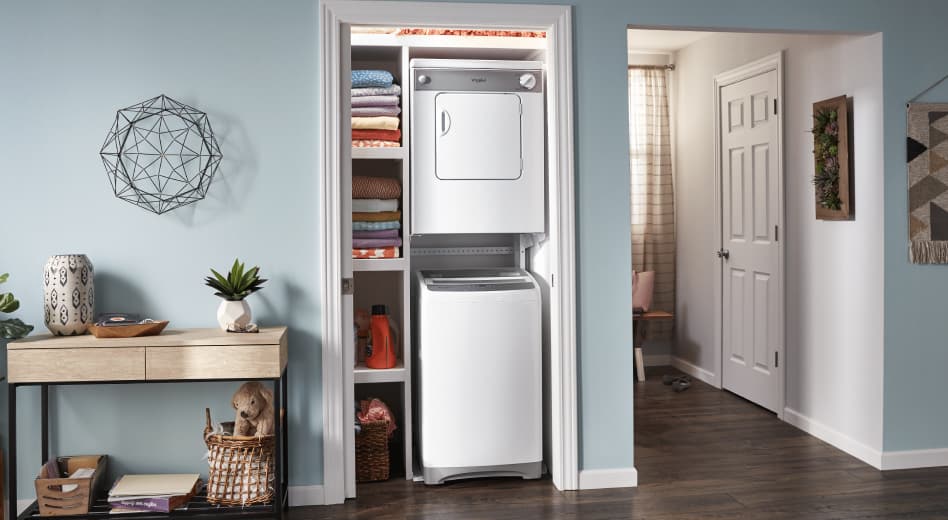

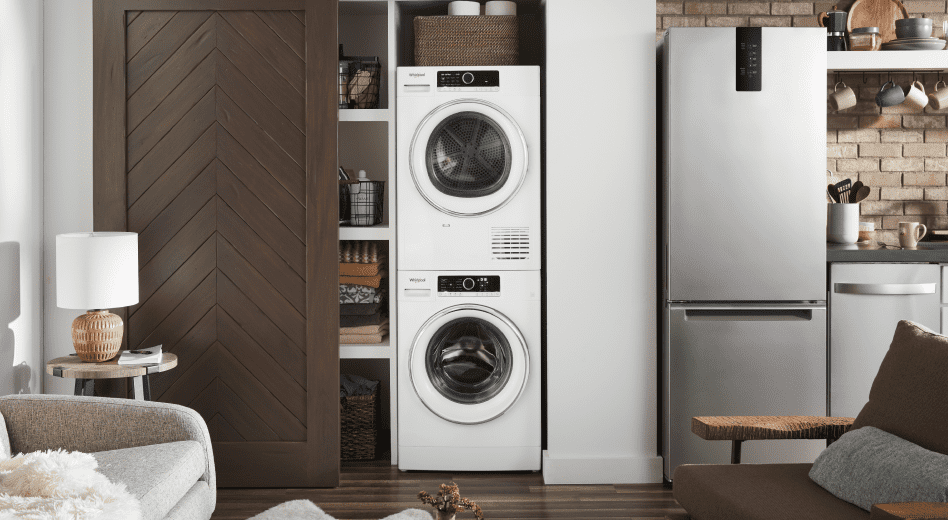

Sizes Of A Small Washer And Dryer

Apartments, modest houses, and closets may all accommodate compact washers and dryers.

You have the option to stack the appliances, arrange them side by side, or even place them below your countertops for more space-saving options thanks to this.

Discover Whirlpool’s compact washers and dryers.

24 inches wide, 33 to 36 inches tall, and 24 to 26 inches deep are the dimensions of typical compact washers and dryers.

In order to stack, the height will increase.

A space that is around 24 inches broad, 66 to 72 inches tall, and 24 to 26 inches deep should be taken into consideration.

You will want an area that is about 48 inches wide, 34 inches tall, and 25 inches deep to position compact washers and dryers side by side.

Keep in mind to place the appliances one inch apart.

Always remember to provide at least six inches of room in the rear for hoses and ventilation whether you are stacking or aligning items side by side.

Because ventless dryers may be installed more shallowly than standard-sized vented dryers, they may be even more space-saving than vented dryers.

These machines generally have storage space between one and three cu. ft., which is roughly half that of a normal dryer.

Find Compact Washers And Dryers From Whirlpool®.

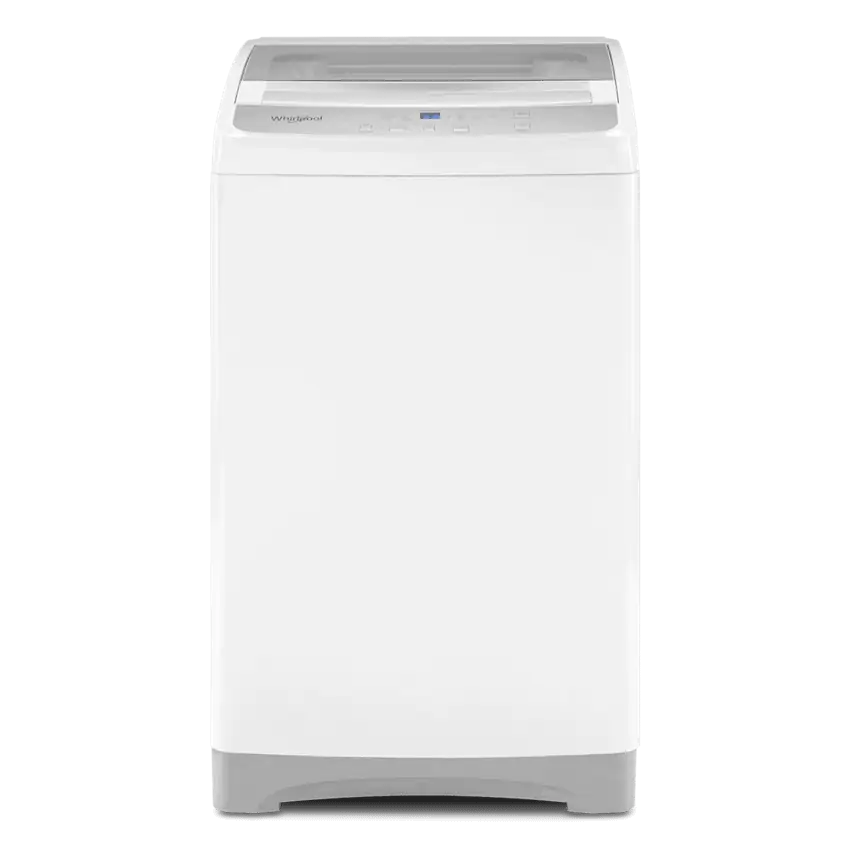

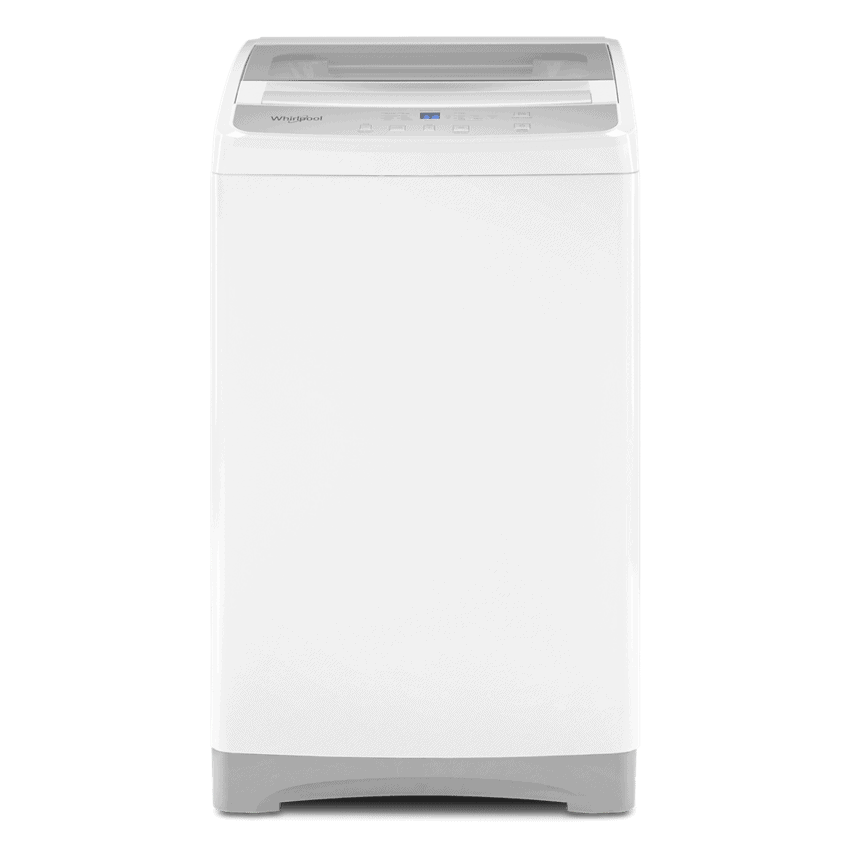

#1. 1.6 cu. ft. Compact Top Load Washer with Flexible Installation

WTW2000HW

Free Delivery

#2. 2.3 cu. ft. 24″ Compact Washer with Detergent Dosing Aid Option

WFW5090JW

Free Delivery

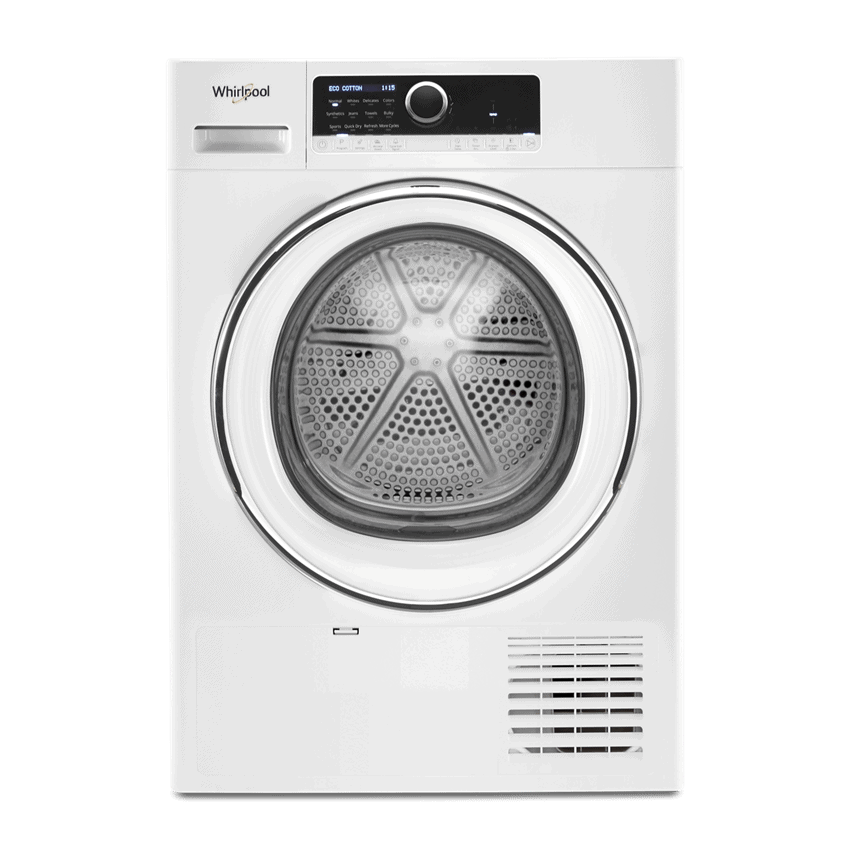

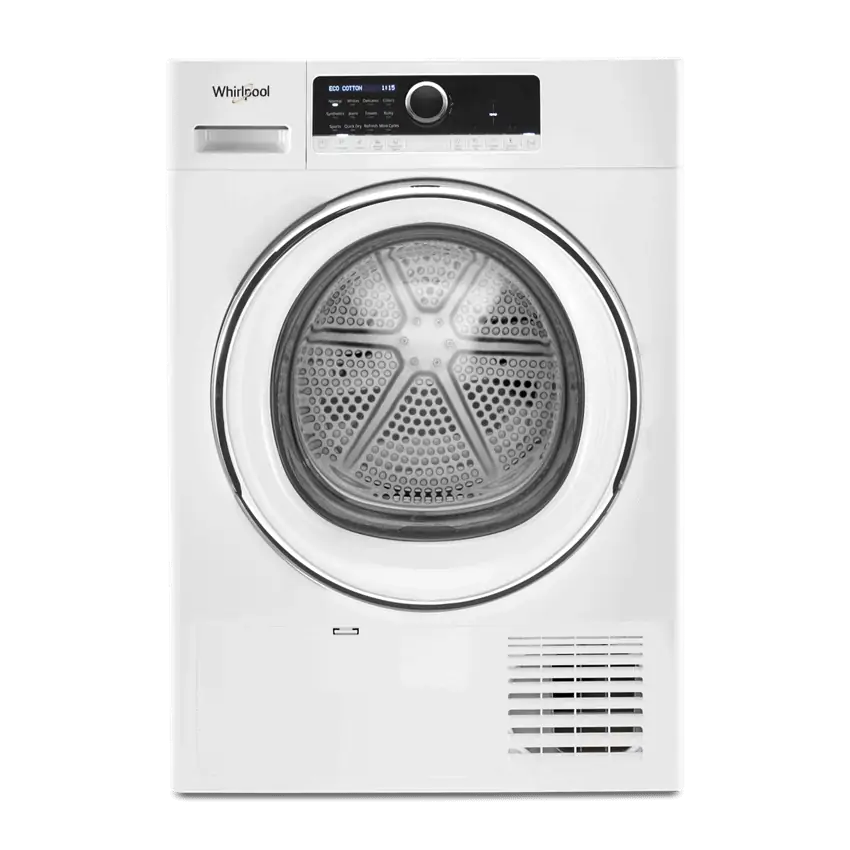

#3. 4.3 Cu. Ft. 24″ Small Space Ventless Dryer

WCD5090JW

Free Delivery

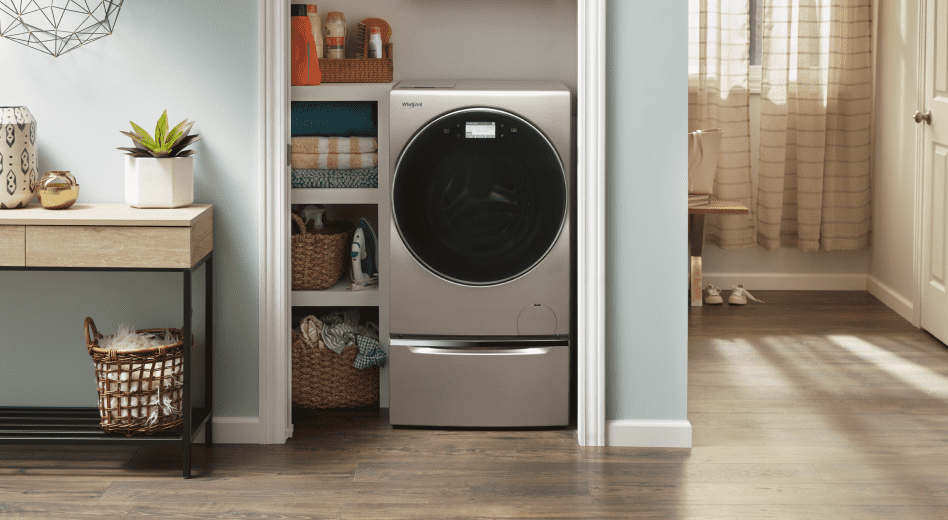

Dimensions Of A Combined Washer And Dryer

Another space-saving alternative that can wash and dry your clothes in one machine is an all-in-one washer and dryer.

This device allows you to save room without compromising laundry performance.

All-in-one versions normally have a storage capacity of two to four cu. ft and measure between 23 and 27 inches wide, 33 to 39 inches tall, and 22 to 30 inches deep.

Shop For Washer/Dryer Combinations From Whirlpool®.

Dimensions Of A Large-Capacity Washer And Dryer

A king-size comforter and sheets may be washed in one load using a large capacity washer, which normally has a capacity of more than five cubic feet.

A big capacity dryer typically has a capacity of seven to nine cubic feet, which is sufficient to dry 15 to 20 towels in one cycle.

Discover Whirlpool’s high capacity washers and dryers.

Shop For Large Capacity Washers And Dryers From Whirlpool®

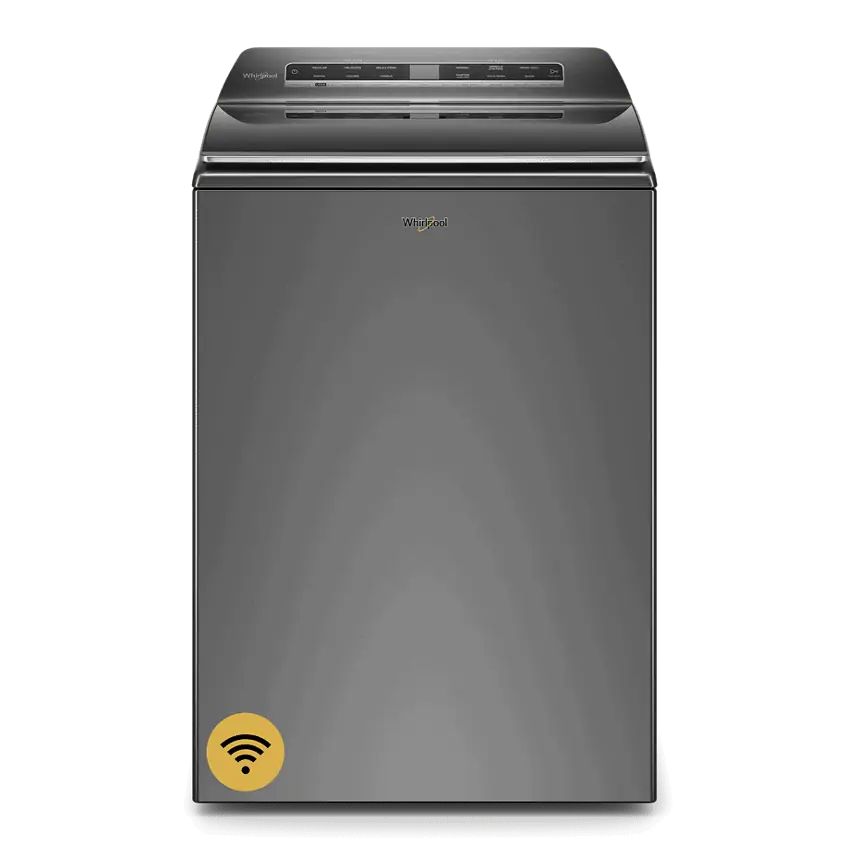

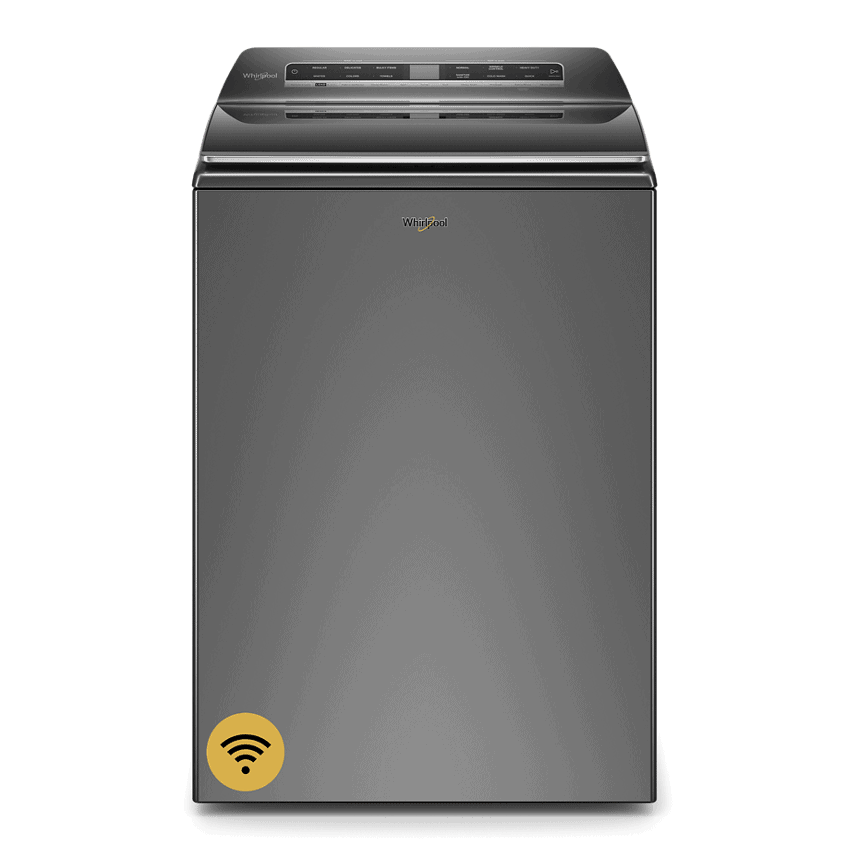

#1. 5.3 cu. ft. Smart Top Load Washer

WTW7120HC

Free Delivery

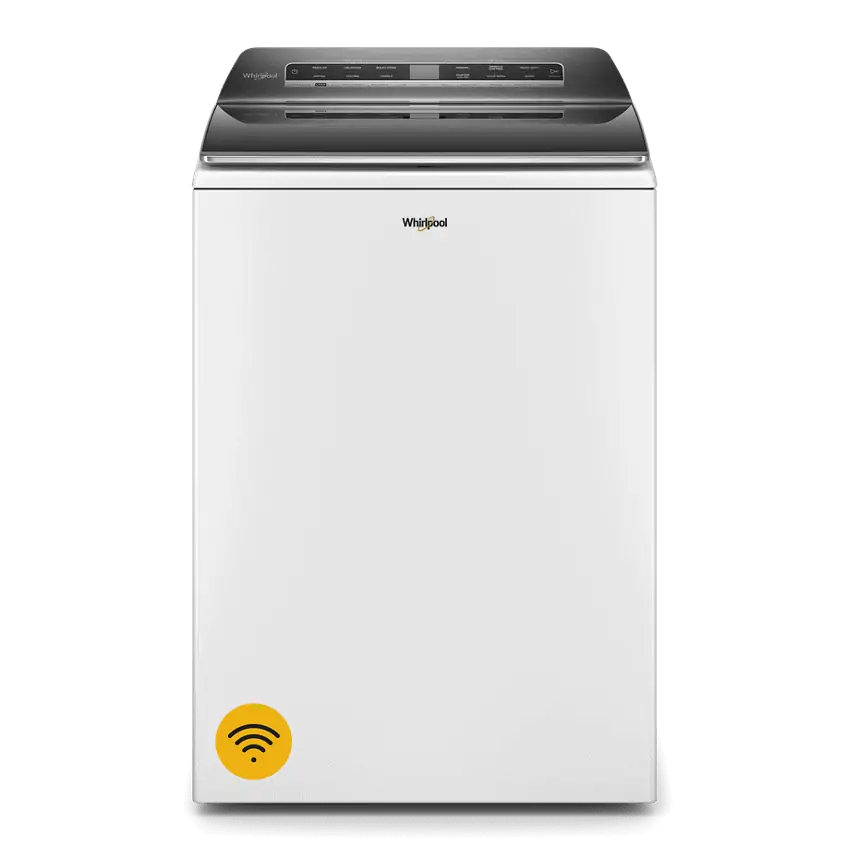

#2. 5.2 – 5.3 cu. ft. Top Load Washer with 2 in 1 Removable Agitator

WTW8127LW

Free Delivery

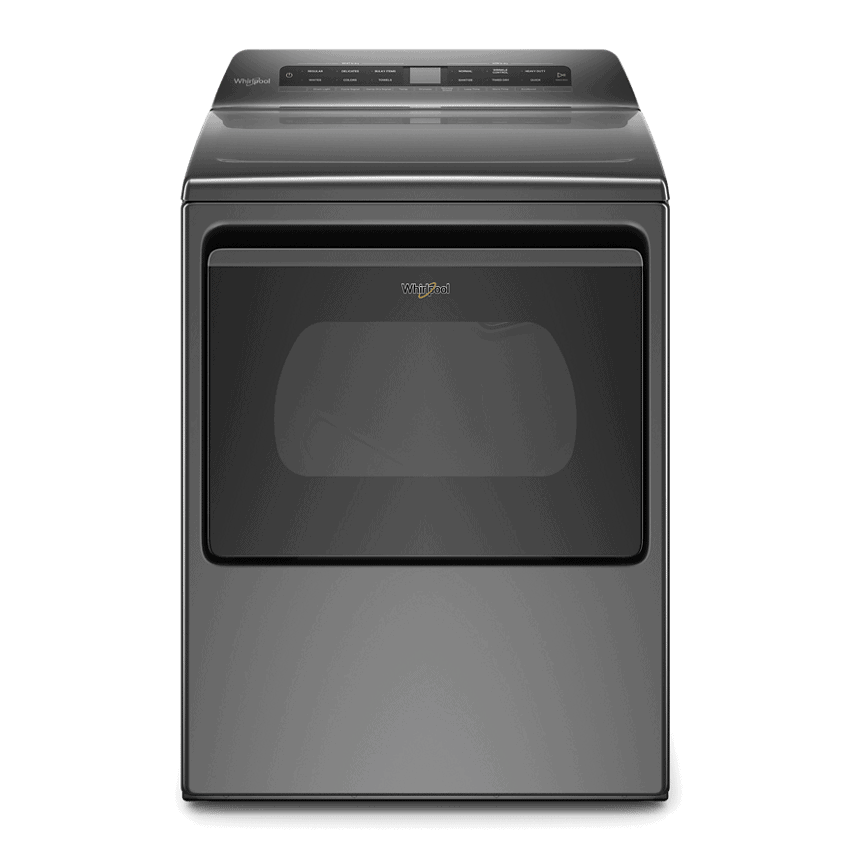

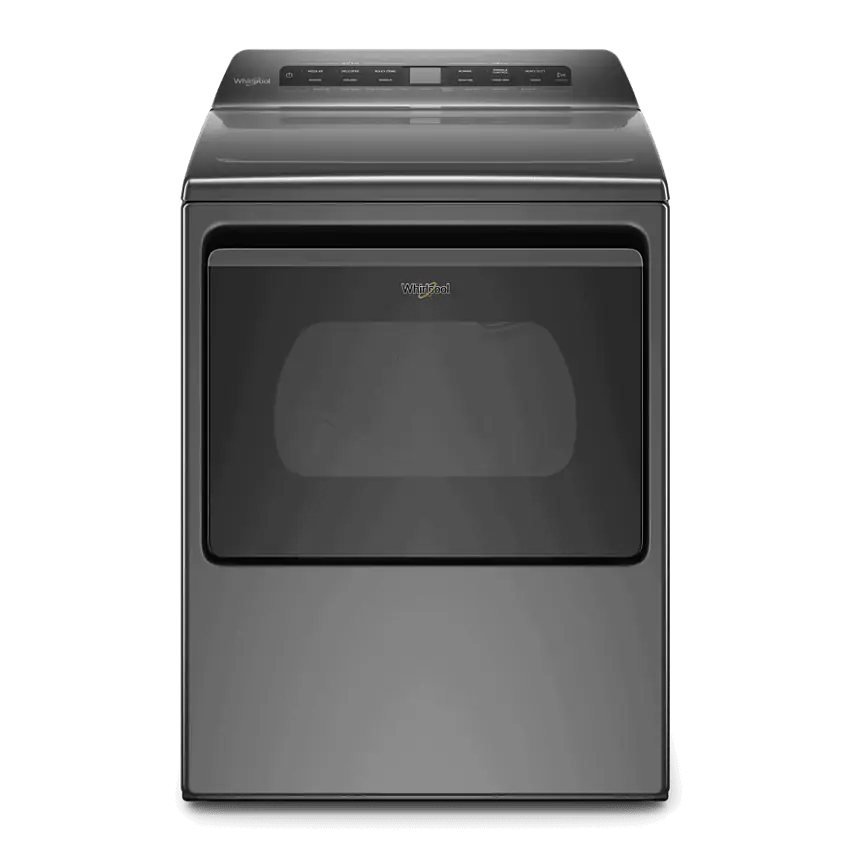

#3. 7.4 cu. ft. Top Load Electric Dryer with Intuitive Controls

WED5100HC

Free Delivery

Measurement Guidelines For New Washers And Dryers

To guarantee a suitable fit, measure the height, width, and depth of the laundry area in addition to the sizes of your washer and dryer.

When placing appliances side by side, remember to provide six inches between the back wall and one inch between each appliance.

You’ll require:

  • Tape measure
  • Paper with a pencil
  • This manual

Step 1: Gauge The Width Of The Washer And Dryer

Measure the width of your washer and dryer from left to right using your measuring tape.

For flexibility, increase the width measurement by one inch to account for the buffer area between each side wall.

When positioning your appliances, leave a one-inch space between them to assist reduce noise.

Step 2: Measure The Height Of The Washer And Dryer

Next, determine the top to bottom height of your washer and dryer.

To be safe, add an additional two feet to guarantee that top load units can be loaded and unloaded with ease.

Step 3: Measure The Depth Of The Washer And Dryer

The depth of your washer and dryer should also be measured, from front to rear.

Be careful to round up your depth measurements by roughly six inches to accommodate for hoses and venting in the appliance’s rear.

To provide for more room to load and unload clothes, front loaders should add around four feet.

Ensure that the closet doors may open and shut completely without being obstructed if you are installing the appliances inside of a closet.

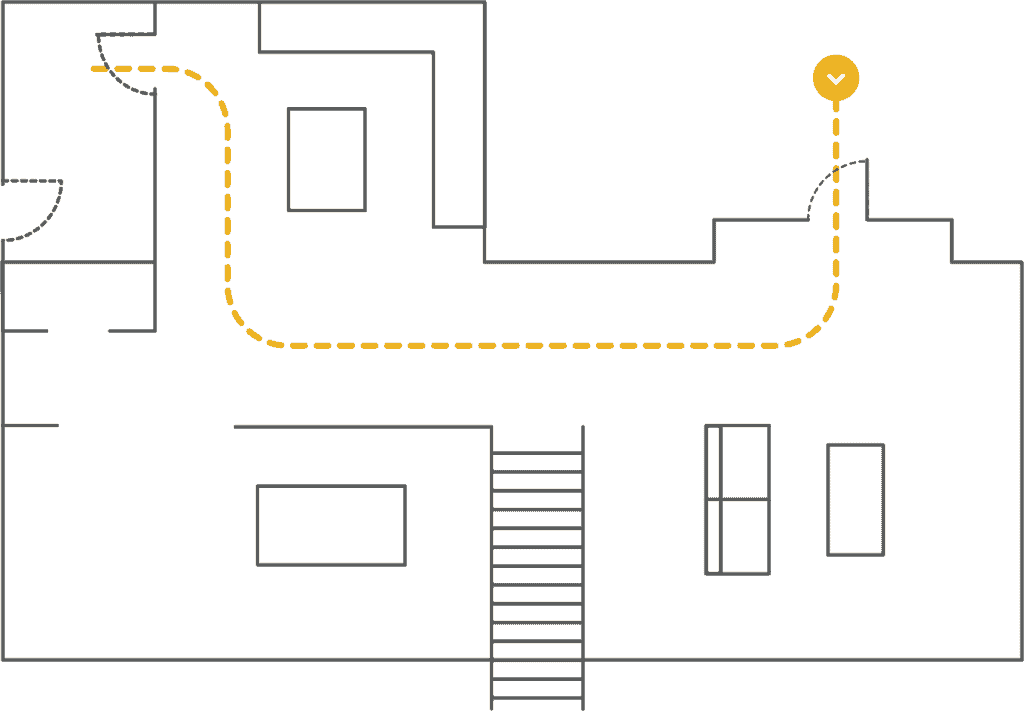

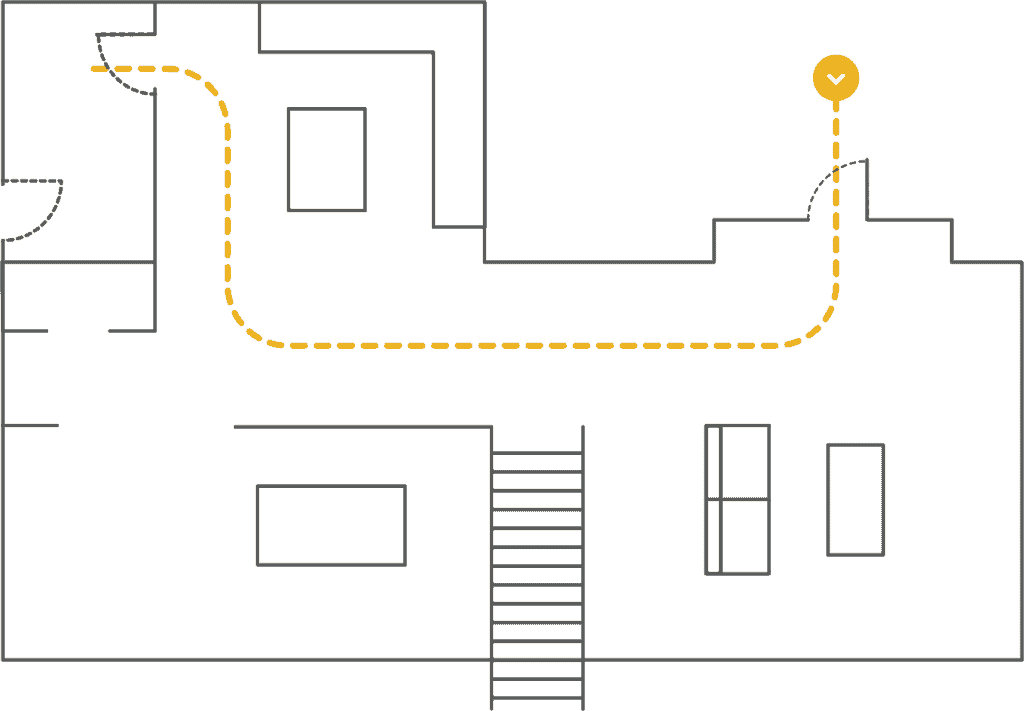

Step 4: Plan And Measure A Delivery Route For The Washer And Dryer.

Find the optimal entryway to the intended installation area after taking your dimensions.

Measure the width of your doors and hallways, starting at the front of your house, to make sure the washer and dryer can fit in the space.

How To Make A Washer And Dryer Purchase

You have a wide range of choices when it comes to picking the ideal washer and dryer for your family’s requirements.

Make sure to take the appliance’s size, capacity, kinds, and features into account before choosing.

Utilize the Whirlpool® Appliance Finder to manage laundry day.

#1. Washer Varieties

  • A top load washer may have an impeller arrangement or an agitator.
  • A center post in agitator washing machines twists to rub against the clothing while they are being washed.
  • Impeller washing machines brush clothing against one another using a rotating cone or disc.

#2. Electric vs Gas Dryers

  • While electric dryers need a separate 30 amp circuit and a nearby grounded electrical outlet, gas dryers need either an existing gas connection or the installation of one.

#3. Dryer Exhaust

  • The ventilation in conventional dryers usually circulates air from outside.
  • Ventless dryers have a reduced depth, recirculate air constantly through the drum, and use a heat exchanger to condense moisture.

#4. High Performance

  • In addition to consuming less water throughout the washing cycle, high-efficiency washers and dryers are also more energy-efficient than ordinary versions.

#5. Features

  • For your laundry requirements, there are several practical features to take into account, such the Load & GoTM Dispenser from Whirlpool.
  • When it comes to multitasking and convenience, smart appliances may be quite useful.
