This guide is for you if your Norcold refrigerator won’t chill using gas or electricity.

Additionally, you will learn how to diagnose and repair a refrigerator that is not chilling even when the freezer is.

Solutions For A Norcold Refrigerator That Is On But Not Cooling

Norcold refrigerator cooling issues are quite distinct from those with other household refrigerators.

mostly because Norcold refrigerators employ the gas absorption method instead of compressors as domestic refrigerators do.

The hydrogen, ammonia, sodium chromate, and water phase changes of the cooling unit of the Norcold refrigerator are used to extract and absorb heat.

However, the rate at which the coolant can flow through the condenser coils—which is governed by gravity—determines the amount of absorption.

To operate effectively, the cooling unit must be level; otherwise, the coolant cannot flow through the coils, leading to typical Norcold refrigerator issues.

In general, more recent Norcold refrigerator generations may continue to operate, although briefly.

Typically, the cooling system might become irreparably damaged if the refrigerator has not been level for 30 minutes.

In this scenario, you start to have ongoing refrigerator issues that would need the purchase of a new refrigerator or the construction of a new cooling system.

By purchasing a hydraulic automatic leveler for an absurdly little cost, you may eliminate these issues.

The leveler should be put on a tiny shelf in the freezer before stabilizing your refrigerator.

Check the level to make sure the liquid is in the middle of the circle after the refrigerator has settled.

The refrigerator is not level if the liquid is outside of the circle.

Check the level after making a few positional tweaks.

To level the refrigerator in truck campers, you may have to use leveling blocks and hydraulic jacks.

Legs made of wood or plastic may be used as levelers.

More importantly, make sure that each time you pull up, you check the level of your refrigerator.

Additionally, if your refrigerator hasn’t worked in a while, it can act strangely.

The refrigerant does not flow when the refrigerator is turned off.

As a consequence, silt buildup and inadequate operation may occur.

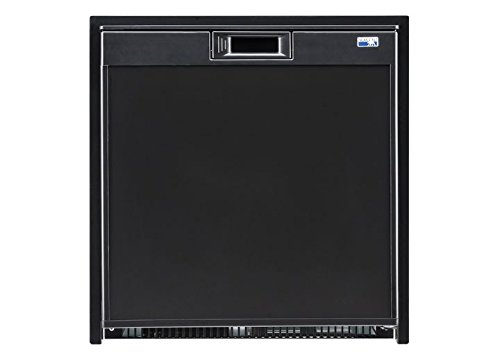

Norcold NR751BB Nr751Bb Dc Refer 2.7 Cu Ft

  • Hermetically sealed, very silent compressor

The information on product costs and availability is correct as of the specified date and time but is subject to change.

This product may be purchased using any pricing and availability details that are shown on [relevant Amazon Site(s), as applicable] at the time of purchase.

Quick Fix for a Norcold Refrigerator That Isn’t Cooling Enough

The refrigerator is constructed with a number of sections that work together to provide adequate cooling.

We’ve included a few parts that may be able to point out any cooling-related issues.

First off, a Norcold refrigerator’s cooling system relies on gravity to work.

To function correctly in this scenario, the cooling unit has to be level.

These refrigerators are designed to operate more effectively at typical room temperatures.

They may struggle to cool down if the outside temperature is too high.

This is necessary because cold air is required for the condenser fins on top of the cooling unit to function correctly.

By taking off the condenser panel outside the refrigerator, you may reach the condenser fins.

Make sure your refrigerator has adequate space for ventilation and that there are no blockages.

Without an external fan, you may simply mount the fan underneath the cooling system in an RV refrigerator.

The refrigerator’s thermistor then enables it to maintain a certain range of cooling temperatures.

The thermistor activates its cooling cycle when the temperature starts to increase.

You can check the thermistor if your fridge starts to malfunction.

Within the refrigerator compartment, the thermistor is concealed by a tiny plastic cover that is fastened to the surface of the ceiling, rear wall, or sidewall.

Take a look at how the refrigerator cools by removing the thermistor from behind the plastic cover.

If it cools perfectly, the thermistor has to be replaced since it is defective.

Consider purchasing a high-velocity cooling fan if you have examined all the places mentioned above and the refrigerator is still not cooling.

To guarantee optimal airflow, the fan should be positioned behind the cooling device.

In the refrigerator chamber, you may also install an internal aerator fan facing the condenser fins.

See how to troubleshoot the heating system of a refrigerator that is not cooling as you want it to in the video down below.
How to repair Refrigerator Freezer Not Cold Enough – Troubleshooting Heater Element – AdamDIY

Why Won’t My Norcold Refrigerator Cool Using Electricity?

Investigate the following parts if your Norcold refrigerator isn’t cooling in electric mode:

#1. Compressor for a Refrigerator

The condenser coils are found behind the refrigerator, and they are where the compressor of the refrigerator pushes out compressed refrigerant vapor.

Pushing generates heat, which eventually cools and is returned to the refrigerator.

The compressor or compressor start relay may be faulty if the cooling fan is working but the refrigerator compartment is not cooling.

The steps listed below should be followed to solve this issue:

The compressor is located in a tiny space behind the refrigerator, to start.

It is a little, cylindrical, black object with cables attached to it.

The start relay is located within the compressor; connect it to the compressor’s rear.

You must shut off the power supply and lift the refrigerator away from the wall in order to reach both components.

The start relay may be physically tested to determine its state of operation.

Simply unhook the compressor’s start relay and give it a little shake.

If it rattles inside, the start relay has to be replaced since it is damaged.

If there isn’t any rattling, the start relay is working properly, and the compressor itself may be the source of the issue.

Compressor replacements may be costly and time-consuming.

Pull the refrigerator away from the wall, switch off the power supply, detach the back panel, and then replace the compressor.

If there are metal guards around the compressor, you must remove them.

The compressor should then be disconnected from the capacitor, as well as the discharge and suction lines.

#2. Condenser Coils

The hot gas released by the compressor must be transported to the evaporator coils through condenser coils.

The coolant condenses to a liquid as it passes through the coils.

The refrigerant has a difficult time circulating through the condenser coils if they are blocked, which may further limit how cold the refrigerator can become.

Find the condenser coils to clean up blocked coils.

The coils are the tiny, tangled black tubes found behind the refrigerator.

They feature a passageway that descends to the freezer’s actual interior from the compressor section.

The coils should then be cleaned to guarantee optimal ventilation.

Before cleaning or doing any other work on the refrigerator, don’t forget to cut off the power supply.

To clean accumulated debris, pull the refrigerator away from the wall and use a vacuum brush.

If the surface of the coils is still not clean enough, wipe it off with a clean towel and little water.

#3. Condenser Fan

The compressor and condenser coils are kept cold by the condenser fan.

The fan is made to run whenever the compressor is running.

The compressor will overheat if the fan isn’t running while it’s operating, which might cause major, expensive damage.

Disconnect the refrigerator from the power source to diagnose condenser fan problems.

Find the fan by removing it from the wall.

In most cases, the fan is situated next to the compressor and condenser coils in a tiny hollow.

Next, take note of the fan’s rotation.

If anything is keeping the fan from spinning properly, remove it and see how it operates.

Check for dirt buildup and attempt to run the fan with your fingers if there is no blockage and the fan is spinning less quickly than usual.

Spraying penetrating oil on the motor shaft can help you turn things around.

If this doesn’t work, a replacement is required.

To replace the fan, unscrew the bolts holding it in place and take care not to damage it.

Replace the old motor with the new one after removing it from the mounting bracket.

A local appliance component shop is where you may get a replacement fan.

#4. Fan for Evaporator

The air is drawn from the refrigerator and blown over the evaporator coil by the evaporator fan.

Later, the air cools and exits via the vents.

The cooling unit may struggle to produce cold air if the fan is not working while the compressor is operating.

To replace a condenser fan, follow the steps listed below.

Your refrigerator’s contents should be removed after unplugging it from the outlet.

Remove the freezer shelves, shelf supports, and storage bins.

After that, release the freezer’s back wall’s screws and remove the evaporator panel.

To remove the fan from the freezer after it is exposed, remove all of the wire connections or the fan motor’s harness.

Make careful to remove the mounting clip and fan blade as well.

The replacement motor should be plugged into the wire connections and then placed within the shroud.

After attaching the fan blades and securely covering the fan motor, attach the mounting bracket or clip.

Return the evaporator fan to the freezer, then use the pins you previously removed to secure the freezer wall.

Why Won’t My Gas-powered Norcold Refrigerator Cool?

Check the refrigerator’s 12-volt DC supply voltage if a Norcold refrigerator won’t operate on propane.

A 12-volt DC source and a 120-volt AC supply are required for the Panel circuit board (PC board) to operate effectively.

Turn on the propane stove, and ensure a consistent flame is burning.

For burner area tune-up, according to the directions in the manufacturer’s handbook.

Cleaning the burner tube, the propane jet, and adjusting the igniter gap are all required.

Take off the PC board, clean it with DeOxit, and check the electrical connections if the refrigerator is still unable to chill.

In this manner, you may learn more about the problem.

Why Does My Norcold Freezer Cool Even While My Refrigerator Doesn’t?

Your refrigerator may be having ventilation issues if the freezer compartment cools down before the refrigerator section.

The diffuser is often used by the freezer to provide cold air into the refrigerator.

The diffusion of chilly air is reduced or eliminated if ice plugs the diffuser duct.

You can see whether the evaporator fan is running by checking.

You should check again later if there is no noise.

If the fan is functioning correctly, you may need to contact a qualified specialist.
